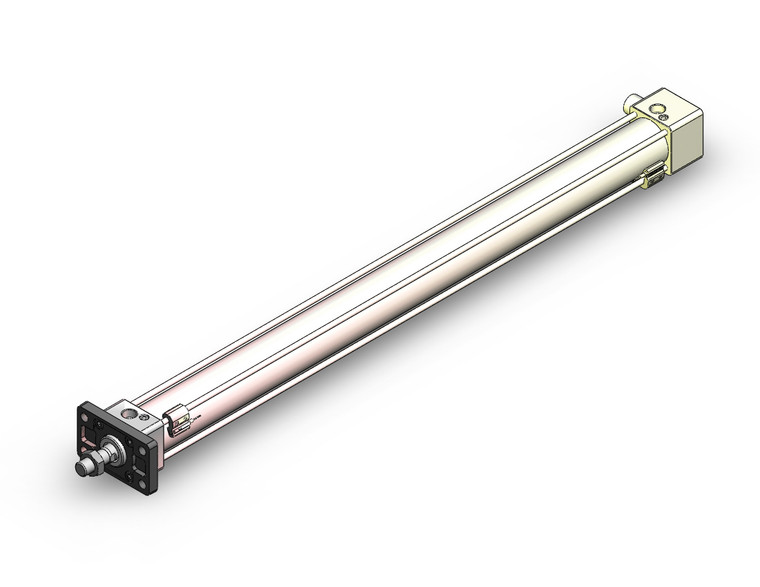

SMC MDBBF40-600-HL-M9BSAPC MBB Series Air Cylinder
SMC
$350.90
The SMC MDBBF40-600-HL-M9BSAPC MBB Series Air Cylinder is engineered for efficiency and performance. This air cylinder features a redesigned rod cover and head cover, resulting in a weight reduction of up to 10%, making it lighter and easier to handle. It offers the convenience of part numbers that include rod end brackets and/or pivot brackets, eliminating the need to order these components separately. Additionally, it comes equipped with an auto switch, compatible with Series MDB-Z models such as MDB, MDBW, MDBK, MDBKW, MDBB, and MDB Q, ensuring seamless integration and enhanced functionality for your pneumatic applications.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Rod Side Flange Style
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 600 mm
- Suffix For Cylinder:
- Without Rod Boot
- Lock Position:
- Head End Lock
- Manual Release Type:
- Locking Type
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Suffix For Cylinder2:
- Without Rod Boot
- Lock Position2:
- None
- Manual Release Type2:
- None
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
