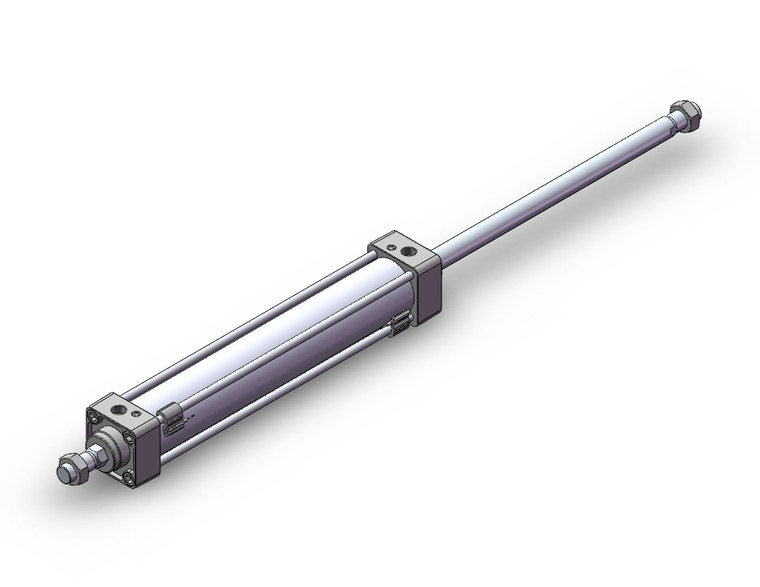

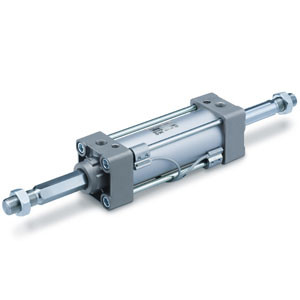

M(D)BKW-Z, Air Cylinder, Non-rotating, Double Acting, Double Rod
The MB series is a light weight, medium duty tie rod cylinder. Available bore sizes range from 32mm to 125mm. The standard air cushion utilizes a floating cushion seal to eliminate piston rod bouncing. The MB series is available with many standard options, which include stroke adjustment, tandem, high/low temperature seals, heavy rod scraper, non-rotating rod, double rod and many more.
- Double acting, non rotating double rodBore sizes: 32, 40, 50, 63, 80, 100 (mm)Strokes from 25mm through 700mm depending upon bore sizeMounts: basic, foot, flange, center trunnionWith or without nylon or heat resistant rod boot, one end onlyVariety of switches and a variety of lead wire lengths
Series Catalog
