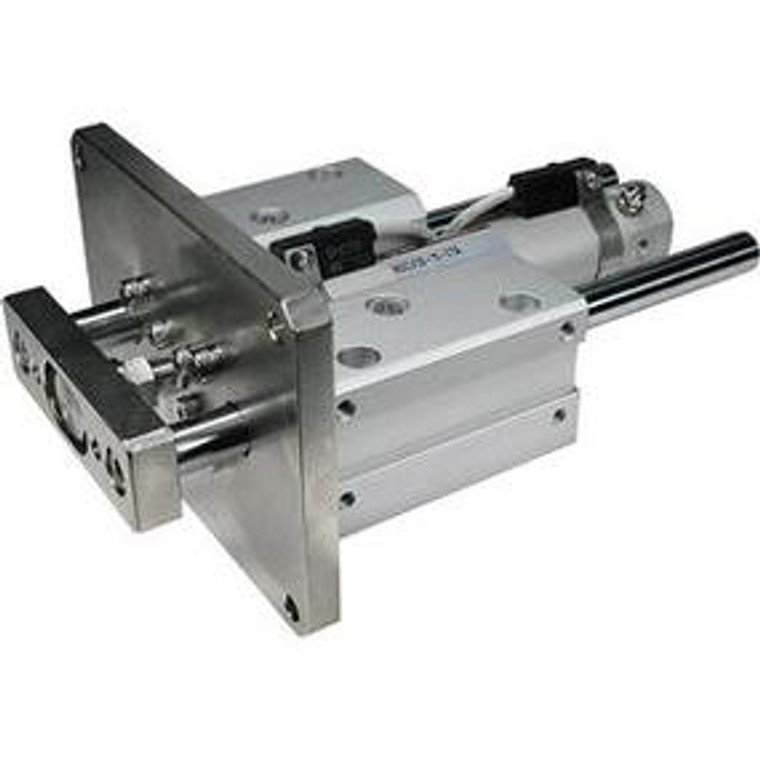

SMC MGCLB32TN-250-R-K59WL MGC Series Guide Cylinder Compact Type
SMC
$526.75
The SMC MGCLB32TN-250-R-K59WL MGC Series Guide Cylinder Compact Type is a highly efficient linear transfer unit designed for optimal performance in space-constrained environments. Featuring a compact guide body and front plate, this guide cylinder is both lightweight and space-saving, making it an ideal choice for applications where efficiency and precision are paramount. Its streamlined design ensures smooth operation and reliable performance, providing a robust solution for your linear motion needs.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- NPT
- Cylinder Stroke:
- Standard Stroke 250 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- With rear plate
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
