SMC MGGLB20-200-HL-M9BWL Mgg, Guide Cylinder

(No reviews yet) Write a Review
SKU:
MGGLB20-200-HL-M9BWL
Condition:
New
$548.55

Description

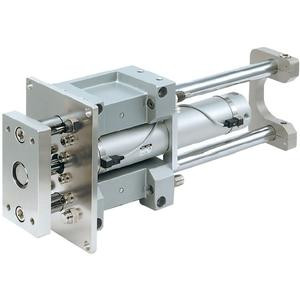

MGG-H/R, Standard External Guided Cylinder with End Lock

The MGG integrates a round body, end lock cylinder for its power source with external guide rods to isolate the load bearing from the movement of the actuator s rod and seals for a one piece unit. The end lock can be specified for either the head end (H) or rod end (R) of the stroke. The brake spring, end lock mechanism will engage when air pressure is lost for drop prevention applications and can be released by reintroducing air pressure or via a manual release bolt. It is enhanced with shock absorbers at the end of stroke for maximum kinetic energy absorption. Non-rotating accuracy ranging from +/-0.02 for 100 mm bore to +/-0.07 for 20 mm bore. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications. The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.
-

- Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 mm
- Available in basic or front flange mounting
- Adjustable stroke range: 10 mm (20 mm bore)
- Adjustable stroke range: 15 mm (25 - 100 mm bore)
- External shock absorbers as standard
- Auto switch capable
-
