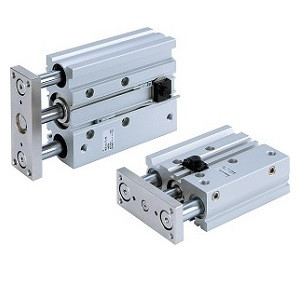

SMC MGPM20-25-RN-M9BL MGP Series Compact Guide Cylinder With End Lock
SMC
$278.35
The SMC MGPM20-25-RN-M9BL MGP Series Compact Guide Cylinder With End Lock is engineered for efficiency and space-saving performance. This innovative cylinder features a weight reduction of up to 24% thanks to its shorter guide rod and thinner plate design. The space required between the bottom of the cylinder body and your equipment is minimized, with the guide rod shortened by a maximum of 22 mm. Additionally, the cylinder is equipped to accommodate round type and magnetic field resistant auto switches, which can be mounted directly without the need for a spacer. This makes it an ideal choice for applications where space and weight are critical considerations.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- Rc
- Cylinder Stroke:
- Standard Stroke 25 mm
- Lock Position:
- Rod End Lock
- Manual Release Type:
- Non-locking Type
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
