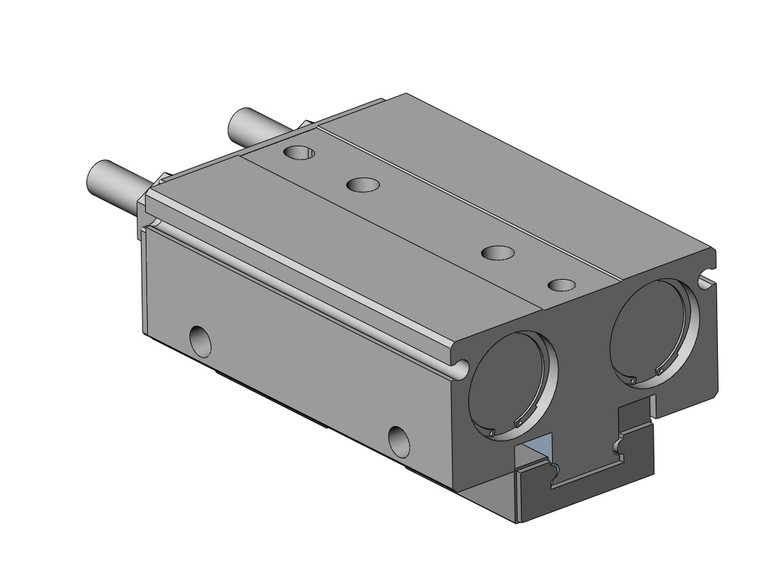

SMC MHF2-20DR-M9PSAPC-X83A2 Cylinder, Mhf2, Low Profile Air Gripper

SMC MHF2-20DR-M9PSAPC-X83A2 MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type

SMC
SKU:
MHF2-20DR-M9PSAPC-X83A2
Availability:
Contact us to confirm availability and lead times.
$706.20
Condition:
New
Current Stock:
Description

MHF2 Series Air Gripper Parallel Style Linear guide Type Compact Type

  • Reduces the height to approx. 1/3 of the standard gripper;
  • Reduces the moment generation with its low profile design;
  • Short, middle and long strokes are available;
  • Compact, but a strong gripping force with the double piston mechanism
    • Additional Information
    Bore Size:
    Bore Size 20 mm
    Stroke:
    Short Stroke
    Body Option:
    Side Piping Type
    Auto Switch:
    Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    With An Adjustable Opening/Closing Finger Positioning
