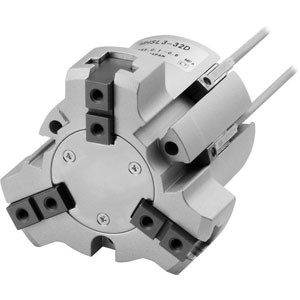

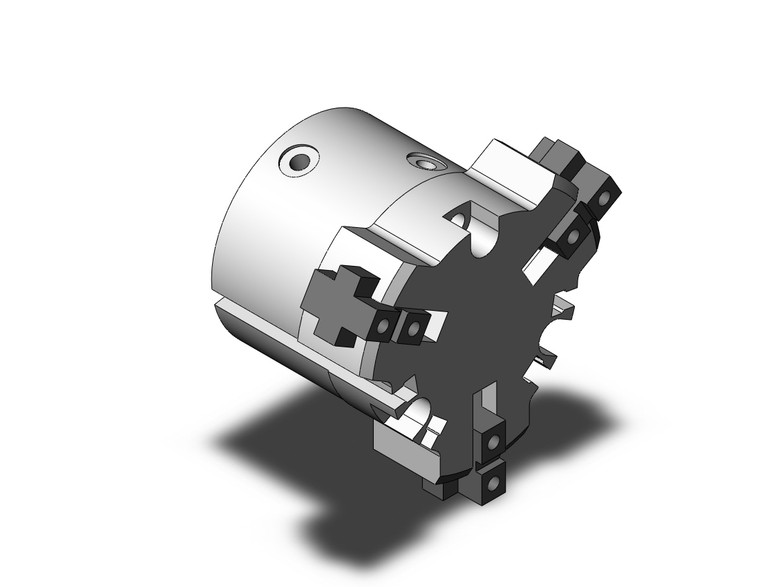

SMC MHSL3-40D-M9PSAPC MHSL3 Series Air Gripper Parallel Style Slide guide Type Round body 3Finger Long Stroke Type
SMC
$532.25
The SMC MHSL3-40D-M9PSAPC is a high-performance air gripper designed for precision and efficiency in industrial applications. This model is part of the MHSL3 Series, featuring a parallel style slide guide with a round body and a unique 3-finger long stroke type. Its vertically compact and lightweight design is achieved through a wedge-shaped cam construction, making it ideal for operations where external force is applied, such as press fitting. The gripper offers exceptional repeatability with a precision of ±0.01 mm, ensuring consistent performance. Its long stroke capability provides strokes that are twice as long as the standard type, making it perfect for gripping cylindrical workpieces. Additionally, the gripper ensures reliable removal of workpieces with its through-holes and center pusher, enhancing operational efficiency and productivity.
- Bore Size:
- Bore Size 40 mm
- Port Thread Type:
- M thread(?16to?63)?Rc(?80to?125)
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
