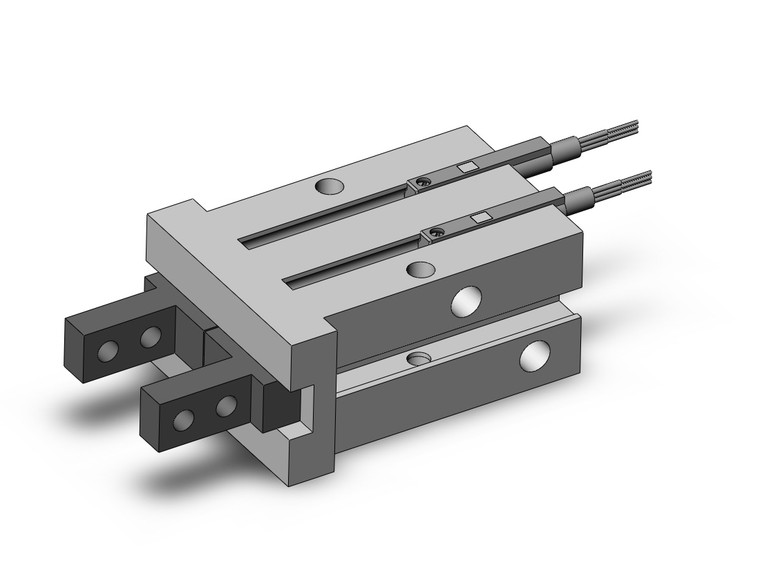

SMC MHZ2-16C2-M9PL Gripper, Mhz, Parallel Style Air Gripper

SMC MHZ2-16C2-M9PL MHZ2 Series Air Gripper Parallel Style Linear guide Type Standard Type Bore Size?10-25

SMC
SKU:
MHZ2-16C2-M9PL
Availability:
Contact us to confirm availability and lead times.
$311.35
Condition:
New
Current Stock:
Description
The SMC MHZ2-16C2-M9PL is a high-performance air gripper from the MHZ2 Series, designed for precision and reliability in industrial applications. This parallel style linear guide type gripper features a standard bore size ranging from 10 to 25, ensuring versatility for various tasks. Its linear guide enhances both rigidity and accuracy, making it ideal for precise operations. The gripper is constructed with dustproof and dripproof features, ensuring durability and longevity even in challenging environments. Additionally, users can select from different dust cover materials to best suit their specific needs, providing further customization and protection.
Additional Information
Bore Size:
Bore Size 16 mm
Action:
Single Acting (Normally Closed)
Finger Position/Option:
Standard Side Through-holes In Opening/Closing Direction
Body Option:
Basic Type
Auto Switch:
Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
Number Of Auto Switches:
2 pcs. Or None
Made To Order:
Standard
