SMC PF2M711-N2-L4Q PF2M7-L Series 2-color Display Digital Flow Switch IO-LINK Compatible Products

SMC PF2M711-N2-L4Q PF2M7-L Series 2-color Display Digital Flow Switch IO-LINK Compatible Products

SMC
SKU:
PF2M711-N2-L4Q
$310.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

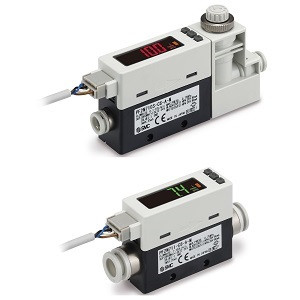

PF2M7-L Series 2-color Display Digital Flow Switch IO-LINK Compatible Products

  • 3-Screen Display Digital Flow Monitor (Dedicated for the PF2M7) [New]; Allows for the monitoring of remote lines PFGM302 Series;
  • Dry air, N2, Ar, CO2;
  • A wide range of flow measurement is possible with 1 product.; Flow ratio 100:1, Smallest settable increment: 0.01 L/min;
  • Improved resistance to moisture and foreign matter;
  • Compact, Lightweight; Weight: 27.3% lighter (55g ? 40g);
  • Low current consumption: 35 mA or less;
  • Grease-free;
  • IO-Link compatible
    • Additional Information
    Type:
    Integrated Display
    Rated Flow Range (Flow Range):
    1 To 100 L/min
    Flow Adjustment Valve:
    Flow Adjustment Valve: None
    Port Size:
    NPT1/4
    Output Specifications:
    OUT1:IO-Link/NPN/PNP,OUT2:Analog 4 To 20 mA
    Option 1:
    M12 Conversion Lead Wire (0.1 m)
    Unit Specifications:
    Unit Selection Function
    Option 2:
    Without Bracket
    Calibration Certificate:
    Without Calibration Certificate
    Made To Order:
    Standard
