SMC PF2M711S-C8-A-MS digital flow switch digital flow switch

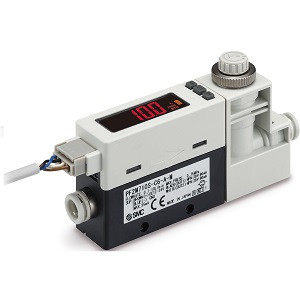

SMC PF2M711S-C8-A-MS PF2M7 Series 2-Color Display Digital Flow Switch

SMC
SKU:
PF2M711S-C8-A-MS
$297.00
Condition:
New
Current Stock:
Description

PF2M7 Series 2-Color Display Digital Flow Switch

  • 3-Screen Display Digital Flow Monitor (Dedicated for the PF2M7) [New]; Allows for the monitoring of remote lines PFGM302 Series;
  • Dry air, N2, Ar, CO2;
  • A wide range of flow measurement is possible with 1 product.; Flow ratio 100:1, Smallest settable increment: 0.01 L/min;
  • Improved resistance to moisture and foreign matter;
  • Compact, Lightweight; Weight: 27.3% lighter (55g 40g);
  • Low current consumption: 35 mA or less;
  • Grease-free;
  • IO-Link compatible
    • Additional Information
    Type:
    Integrated Display
    Rated Flow Range (Flow Range):
    1 100L/min
    Flow Adjustment Valve:
    Flow Adjustment Valve: Yes
    Port Size:
    8mm
    Output Specifications:
    OUT1:NPN
    Option 1:
    Lead Wire With Connector (2 m)
    Unit Specifications:
    SI Unit Only
    Option 2:
    Bracket (For The Type With A Flow Adjustment Valve)
    Calibration Certificate:
    Without Calibration Certificate
