SMC RDQA63TN-100M-M9PWSAPC compact cylinder cyl, compact, air cushion, sw capable

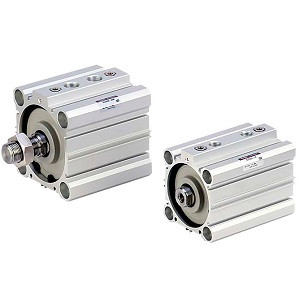

SMC RDQA63TN-100M-M9PWSAPC RQ Series Compact Cylinder With Air Cushion

SMC
SKU:
RDQA63TN-100M-M9PWSAPC
$252.80
Condition:
New
Current Stock:
Description

RQ Series Compact Cylinder With Air Cushion

  • Adds the air cushion mechanism to the CQS and CQ2 series compact; cylinders, extending the body length only +2.5 mm to 13 mm;
  • Nearly triple absorbable, allowable kinetic energy. (Compared to the; rubber bumper of Series CQS and CQ2);
  • Added compact type foot brackets;
  • With auto switch (Series RDQ: RDQ)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Mounting Style:
    Both Ends Tapped Style
    Bore Size:
    Bore Size 63 mm
    Port Thread Type:
    NPT
    Cylinder Stroke:
    Standard Stroke 100 mm
    Body Option:
    Rod End Male Thread
    Auto Switch:
    2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Standard
