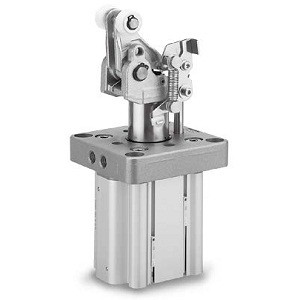

SMC RS2H80TN-40DM-DC-XC102 RS2H-XC102 Series Heavy Duty Stopper Cylinder/Lock Release Specification

SMC RS2H80TN-40DM-DC-XC102 RS2H-XC102 Series Heavy Duty Stopper Cylinder/Lock Release Specification

SMC
SKU:
RS2H80TN-40DM-DC-XC102
$0.00
Condition:
New
Current Stock:
Description

RS2H-XC102 Series Heavy Duty Stopper Cylinder/Lock Release Specification

  • Weight: Reduced by up to 22% (Compared with the current RS1H series);
  • Cylinder tube: Shortened by up to 9 mm (RS2H63-30 stroke);
  • Capable of stopping pallets softly;
  • Stopper cylinder with shock absorber;
  • Lock Release Specification (-XC102)
    • Additional Information
    Bore Size:
    Bore Size 80 mm
    Thread Type:
    NPT
    Piping Direction:
    Flange Side
    Cylinder Stroke:
    Standard Stroke 40 mm
    Action:
    Double Acting
    Roller Material:
    Carbon Steel
    Option:
    With Cancel Cap
    Positional Relationship Of Lever And Port:
    Same Direction As Port
    Shock Absorber:
    Standard
    Auto Switch:
    Without Auto Switch (Built-In Magnet)
    Number Of Auto Switches:
    2 pcs. Or None
    Made To Order:
    Lock Release Specification
