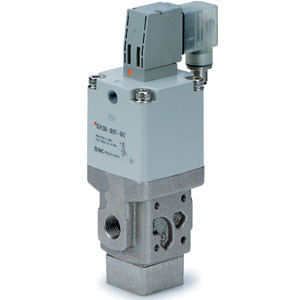

SMC SGHA330A-30N20-B1 Coolant Valve, Air Operated

SMC SGHA330A-30N20-B1 SGHA Series Coolant Valve 3-Port Type Air Operated

SMC
SKU:
SGHA330A-30N20-B1
Availability:
Contact us to confirm availability and lead times.
$927.80
Condition:
New
Current Stock:
Description

SGHA Series Coolant Valve 3-Port Type Air Operated

  • Max. operating pressure: 3 MPa, 7 MPa, 10 MPa [New]、14MPa [New];
  • Applicable to high-speed grinding and long drilling processes;
  • Coolant valve for high-pressure coolant liquid that is ideal for lubrication, dust blowing, and cooling;
  • Service life: 3 million cycles (Based on SMC’s test conditions);
  • Water hammer: Reduced by 20% (Compared to existing model, VNH series);
  • Power consumption: 0.35 W (24 VDC, V116);
  • The 3-port dual pressure type has been standardized
    • Additional Information
    Series:
    SGH300
    Valve Type:
    3-Port
    Seal Material:
    NBR
    Pressure Range:
    Pressure Range 0 to 3 MPa
    Thread Type:
    NPT
    Bore Size:
    3/4
    Bracket:
    Bracket on the left side
