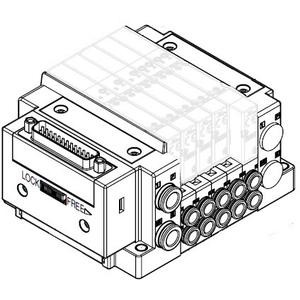

SMC SS5Y5-11FW2-08U-C6 Ss5Y5 8 Sta Manifold Base

SMC SS5Y5-11FW2-08U-C6 SY3000-5000-7000 Series Plug-in Connector Connecting Base D-sub Connector Flat Ribbon Cable PC Wiring Type 10/11

SMC
SKU:
SS5Y5-11FW2-08U-C6
Availability:
Contact us to confirm availability and lead times.
$248.55
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Plug-in Connector Connecting Base D-sub Connector Flat Ribbon Cable PC Wiring Type 10/11

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ; connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY5000
    Type:
    Bottom Ported
    Connector Type:
    D-sub Connector IP67 25 Pins
    Connector Entry Direction:
    Lateral
    Valve Stations:
    8 Stations
    P, E Port Outlets:
    U Side
    SUP/EXH Block Assembly Specifications:
    Standard/Internal Pilot Specification
    A/B Port Size:
    One-touch Fitting For 6
    Mounting And Option:
    Direct Mounting Option:None
