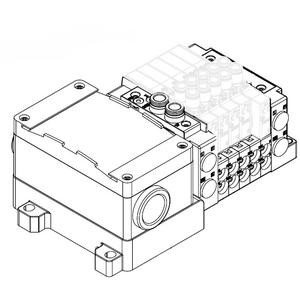

SMC SS5Y5-12T-10B-ND Ss5Y5 10 Sta Manifold Base

SMC SS5Y5-12T-10B-ND SY3000-5000-7000 Series Plug-in Connector Connecting Base Terminal Block Box Type12

SMC
SKU:
SS5Y5-12T-10B-ND
Availability:
Factory Stock
$321.25
Condition:
New
Current Stock:
Description

SY3000·5000·7000 Series Plug-in Connector Connecting Base Terminal Block Box Type12

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ;?connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY5000
    Valve Stations:
    10 Stations
    P, E Port Outlets:
    Both Sides
    SUP/EXH Block Assembly Specifications:
    Standard/Internal Pilot Specification
    P, E Port Size(One-touch Fittings):
    SY3000:?5/16"
    Mounting:
    DIN Rail Mounting (With DIN rail)
