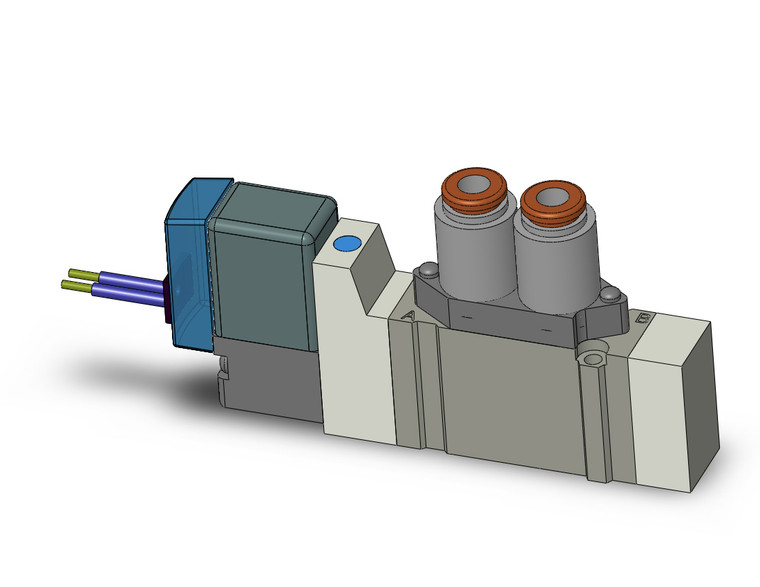

SMC SY3120-5H-C4 4/5 port solenoid valve 5 port solenoid valve

SMC SY3120-5H-C4 SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit

SMC
SKU:
SY3120-5H-C4
Availability:
Contact us to confirm availability and lead times.
$51.95
Condition:
New
Current Stock:
Description

SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit

  • Combined mounting of 3 port valve and 5 port valve is possible;
  • Power consumption: 0.1 W (with power saving circuit);
  • A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold;
  • Manifold type No.: SS5Y3?SS5Y5?SS5Y7?SS5Y9
    • Additional Information
    Series:
    SY3000
    Type Of Actuation:
    2 Position Single
    Coil Specifications:
    Standard
    Rated Voltage:
    24 VDC
    Electrical Entry:
    Grommet Lead Wire Length 600 mm
    Light/Surge Voltage Suppressor:
    Without Light/Surge Voltage Suppressor
    Manual Override:
    Push-turn Locking Type
    A/B Port Size:
    One-touch Fitting For ?4
    Thread Type:
    Rc
    Bracket:
    None
    Made To Order:
    Standard
    CE-compliant:
    -
