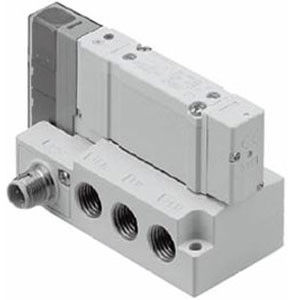

SMC SY7200-5U1-W1-03N SY3000·5000 Series 5 Port Solenoid Valve Sub-Plate Type Plug-In IP67 Compliant

SMC SY7200-5U1-W1-03N SY3000·5000 Series 5 Port Solenoid Valve Sub-Plate Type Plug-In IP67 Compliant

SMC
SKU:
SY7200-5U1-W1-03N
$165.15
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

SY3000·5000 Series 5 Port Solenoid Valve Sub-Plate Type Plug-In IP67 Compliant

  • Thanks to the flow increase, valve size can be reduced;
  • Saves energy and space;
  • Power consumption: 0.1 w (With power saving circuit) / 0.35 w (Standard);
  • Service life: 200 million cycles (Metal seal) / 70 million cycles (Rubber seal);
  • Plug-in sub-plate newly added Plug-in metal base (IP40)/Plug-in connector ;?connecting base (IP67);
  • Manifold type No.: SS5Y3, SS5Y5, SS5Y7
    • Additional Information
    Series:
    SY7000
    Type Of Actuation:
    2 Position Double
    Valve Piping Type:
    Base Mounted(Port Location:Side,Bottom)
    Seal:
    Rubber Seal
    Pilot Type:
    Internal Pilot
    Back Pressure Check Valve(Built-In Valve Type):
    None
    Pilot Valve Option:
    Standard (0.7MPa)
    Coil Specifications:
    Standard
    Rated Voltage:
    24 VDC
    Light/Surge Voltage Suppressor And Common Specification:
    With light/Surge Voltage Suppressor (Non-Polar)
    Manual Override:
    Push-turn Locking Type
    A,B Port Size:
    None
    A,B Port Thread Type:
    Rc
    Type Of Mounting Screw:
    Round Head Combination Screw
    Wiring Type:
    With M12 Connector Cable(300 mm)
    Port Location:
    Side Ported
    Port Size:
    3/8
    Sub-Plate Thread Type:
    NPT
