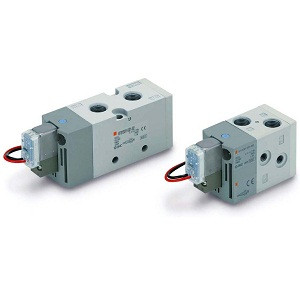

SMC VF3340Y-5DZ1 VF1000·3000 Series 5 Port Solenoid Valve Low Wattage Specification Body Ported/Base Mounted Single Unit

SMC VF3340Y-5DZ1 VF1000·3000 Series 5 Port Solenoid Valve Low Wattage Specification Body Ported/Base Mounted Single Unit

SMC
SKU:
VF3340Y-5DZ1
$198.15
Condition:
New
Current Stock:
Description

VF1000·3000 Series 5 Port Solenoid Valve Low Wattage Specification Body Ported/Base Mounted Single Unit

  • Built-in full-wave rectifier (AC);
  • Built-in strainer in the pilot valve;
  • Manifold type No.: VV5F1?VV5F3?VV5F5
    • Additional Information
    Series:
    VF3000
    Type Of Actuation:
    3 Position Closed Center
    Body Style:
    Base Mounted
    Body Option:
    Pilot Valve Individual Exhaust Type
    Pilot Valve:
    Low Wattage Type
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal With Connector
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
    Bore Size:
    Without Sub-plate
    Thread Type:
    Rc,M5
    Bracket:
    Without Bracket
