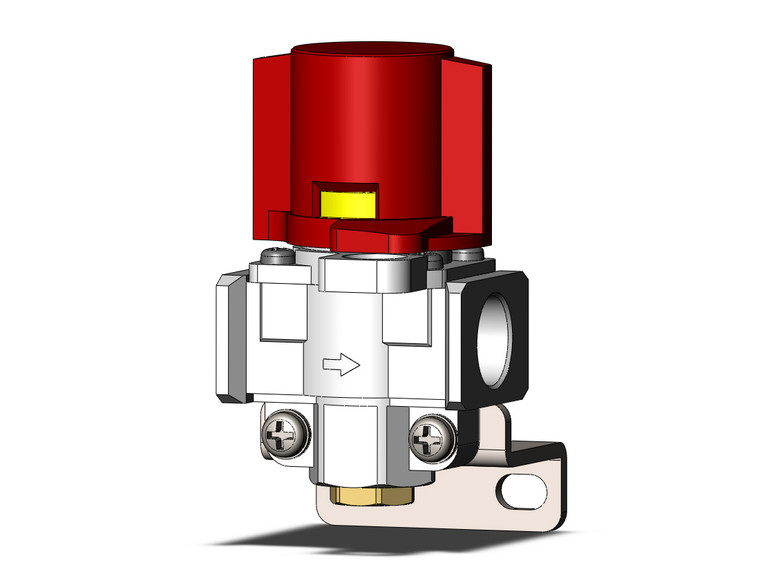

SMC VHS20-N02B-BS-Z Mechanical Valve

SMC VHS20-N02B-BS-Z VHS20·30·40·50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action

SMC
SKU:
VHS20-N02B-BS-Z
Availability:
Factory stock: 46
$66.65
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

VHS20·30·40·50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action

  • Conforming to OSHA standard (Occupational Safety and Health Administration Department of Labor);
  • Manually operated valve can be used to prevent accidents caused by residual pressure in pneumatic lines;
  • Possible to verify the supply and exhaust status of air flow at a glance;
  • When in the exhaust position, the valve may be padlock secured; Prevents accidental start-ups while personnel are cleaning or servicing equipment;
  • Push the handle and then turn, 2-step action prevents malfunction
    • Additional Information
    Body Size:
    20
    Thread Type:
    NPT
    Port Size:
    1/4
    Handle/Bonnet Material:
    Aluminum
    Option:
    With Bracket+Built-In Silencer EXH Port
    Semi-standard Specifications:
    psi As Unit Displayed On Label
    Made To Order:
    Standard
