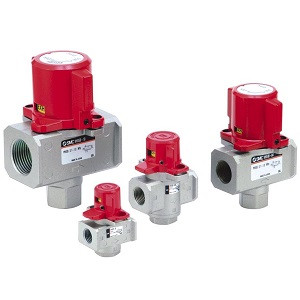

SMC VHS40-N04A-KZ Pressure Relief 3 Port Valve

SMC VHS40-N04A-KZ VHS20·30·40·50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action

SMC
SKU:
VHS40-N04A-KZ
Availability:
Factory stock: 2
$50.25
Condition:
New
Current Stock:
Description

VHS20·30·40·50 Series Conforming To OSHA Standard Pressure Relief 3 Port Valve With Locking Holes Single Action

  • Conforming to OSHA standard (Occupational Safety and Health Administration Department of Labor);
  • Manually operated valve can be used to prevent accidents caused by residual pressure in pneumatic lines;
  • Possible to verify the supply and exhaust status of air flow at a glance;
  • When in the exhaust position, the valve may be padlock secured; Prevents accidental start-ups while personnel are cleaning or servicing equipment;
  • Push the handle and then turn, 2-step action prevents malfunction
    • Additional Information
    Body Size:
    40
    Thread Type:
    NPT
    Port Size:
    1/2
    Handle/Bonnet Material:
    Flame Resistant PBT
    Option:
    -
    Semi-standard Specifications:
    Handle Color: Black
    Made To Order:
    Standard
