SMC

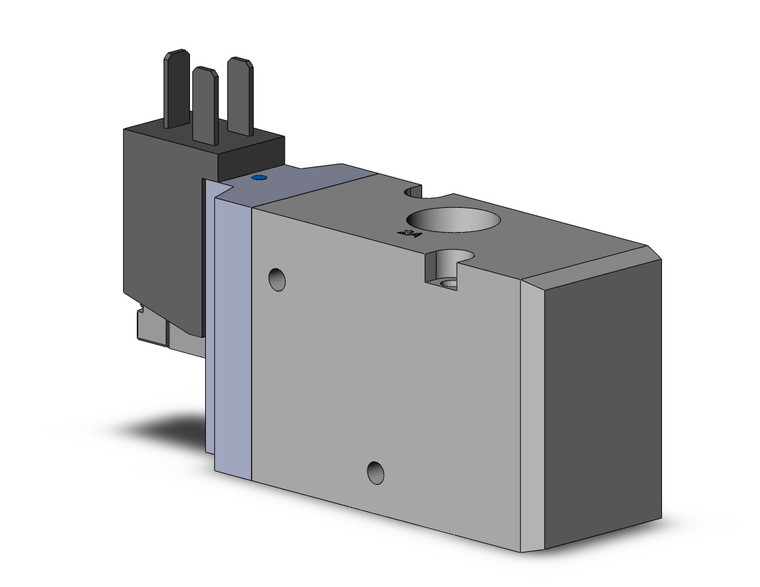

SMC VP742-5YO1-04FB VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit

(No reviews yet) Write a Review
SKU:
VP742-5YO1-04FB
MPN:
VP742-5YO1-04FB
Condition:
New
Series:
VP700
Pilot Type:
Internal Pilot
Pressure Specification:
Standard(0.7MPa)
Coil Specifications:
Standard
Rated Voltage:
24 VDC
Electrical Entry:
DIN (EN175301-803) Terminal Without Connector
Light/Surge Voltage Suppressor:
Without Light/Surge Voltage Suppressor
Manual Override:
Push-turn Locking Type
Port Size:
1/2
Thread Type:
G
Type Of Actuation:
N.O.
Bracket:
None
Made To Order:
Standard
  • SMC VP742-5YO1-04FB 3 Port Solenoid Valve
  • SMC VP742-5YO1-04FB VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit
$102.35

Description

VP300/500/700 Series 3 Port Solenoid Valve Rubber Seal Pilot Poppet Type Body Ported Single Unit

  • Built-in full-wave rectifier (AC);
  • Longer life expectancy: 50 million cycles or more;
  • Built-in strainer in the pilot valve;
  • External pilot type can be used for vacuum applications;
  • Manifold type No.: VV3P3，VV3P5，VV3P7
    • View AllClose
