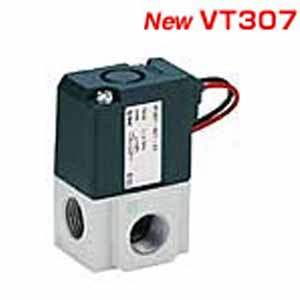

SMC VT307-3DO1-02N-F VT307 Series 3 Port Solenoid Valve Direct Operated Poppet Type Rubber Seal
SMC
$44.35
The SMC VT307-3DO1-02N-F is a versatile 3 Port Solenoid Valve from the VT307 Series, designed for direct operation with a poppet type rubber seal. This valve is engineered for efficiency with a low power consumption of just 1.8 W. It offers a variety of valve functions through its universal porting, making it adaptable for various applications. The valve is equipped with a low ozone concentration countermeasure, utilizing HNBR rubber material in the main valve for enhanced durability and environmental safety. Additionally, it boasts mounting compatibility with conventional products, ensuring seamless integration into existing systems. The manifold type for this model is VV307, providing further flexibility in installation and use.
- Body Type:
- Body Ported
- Valve Option:
- Standard Type
- Pressure Specification:
- Standard Tpye 0.7MPA
- Rated Voltage:
- 110 VAC 50/60Hz
- Electrical Entry:
- DIN Terminal Without Connector
- Light/Surge Voltage Suppressor:
- None
- Bore Size:
- 1/4 8A
- Thread Type:
- NPT
- Bracket:
- With Bracket
- CE-compliant:
- None
