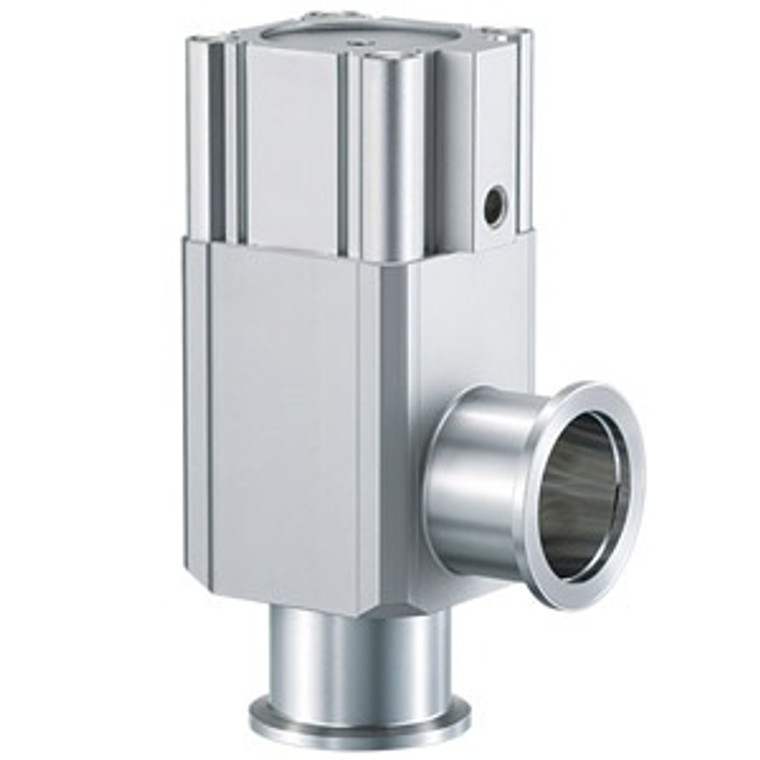

SMC XLF-16A-2M9NA XLF-2 Series Aluminum High Vacuum Angle Valve Normally Closed, O-ring Seal

SMC XLF-16A-2M9NA XLF-2 Series Aluminum High Vacuum Angle Valve Normally Closed, O-ring Seal

SMC
SKU:
XLF-16A-2M9NA
Availability:
Contact us to confirm availability and lead times.
$318.10
Condition:
New
Current Stock:
Description

XLF-2 Series Aluminum High Vacuum Angle Valve Normally Closed, O-ring Seal

  • Aluminum bodied; Uniform baking temperature; Lightweight, Compact; Minimal outgassingr; Minimal contamination from heavy metals;
  • Possible to replace the bellows
    • Additional Information
    Flange Size:
    16
    Flange Type:
    KF(NW)
    Indicator/Pilot Port Direction:
    With Indicator,Flange Side
    Temperature Specifications/Heater:
    5 To 60?,Without Heater
    Auto Switch Type:
    Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
    Number Of Auto Switches/Detecting Position:
    Quantity:2 pcs.
    Body Surface Treatment:
    External:Hard Anodized Internal:Raw Material
    Seal Material:
    Seal Material:FKM
    Part Numbers Indicating Changed Seal Material And Leakage:
    Changed Part:-
