SMC ZK2F10R5DL-07 Vacuum Ejector

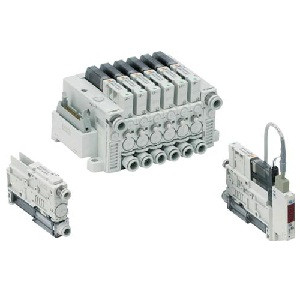

SMC ZK2F10R5DL-07 ZK2 Series Vacuum Module Ejector System

SMC
SKU:
ZK2F10R5DL-07
$217.70
Condition:
New
Current Stock:
Description

ZK2 Series Vacuum Module Ejector System

  • High-noise reduction silencer added. [New]; Low noise: 46 dB (A); Suction flow rate: Improved by up to approx. 20%;
  • Compatible with ejector systems and the vacuum pump systems;
  • Digital pressure switch for vacuum with energy saving function cuts supply air when the pressure reached the desired vacuum.; Air consumption: 90% reduced;
  • More efficient ejector; Suction flow: 50% increased; Air consumption: 30% reduced; (Compared to other SMC single stage ejectors)
    • Additional Information
    System , Body Type:
    For Manifold Individual Port Exhaust
    Nozzle Size (mm):
    1.0
    Combination Of Supply Valve And Release Valve:
    Supply valve:self-holding & Release valve linkage
    Rated Voltage:
    24 VDC
    Pressure sensor , Vacuum pressure switch Type:
    Vacuum digital pressure switch
    Supply valve, Release valve , Vacuum pressure switch Connector Type:
    supply valve and release valve Connector:L plug connector With lead wire With connector
    Vacuum (V) Port:
    1/4"
    Option a:
    Without Option
    Option b:
    Without Option
    Option c:
    Without Option
