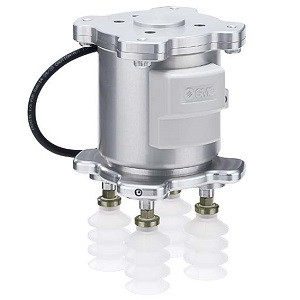

SMC ZXP7A01-ZP32UN-X1 ZXP-X1 Series Vacuum Gripper Unit For Collaborative Robots for Universal Robots
SMC
$2,692.00
ZXP-X1 Series Vacuum Gripper Unit For Collaborative Robots for Universal Robots
●Plug & play configuration for immediate use
URCaps compatible Easy programming
●Operate by simply connecting 1 compressed air supply
tube and an electrical wiring M8 connector.
●Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
●Standards: ISO9409-1-50-4-M6
URCaps compatible Easy programming
●Operate by simply connecting 1 compressed air supply
tube and an electrical wiring M8 connector.
●Integrated vacuum ejector, air supply/release valve, pressure sensor, and cups
●Standards: ISO9409-1-50-4-M6
| Field | Value | Value Details |
|---|---|---|
| Unit Size | 7 | 75 mm |
| Cup Flange Shape | A | With Flange (42 mm x 42 mm) |
| Compatible Manufacturer | 01 | UR:3(E),5(E),10(E),16E |
| Pad | ZP32UN | ZP Series, Diameter:Φ32, Type: Flat, Material: NBR |
