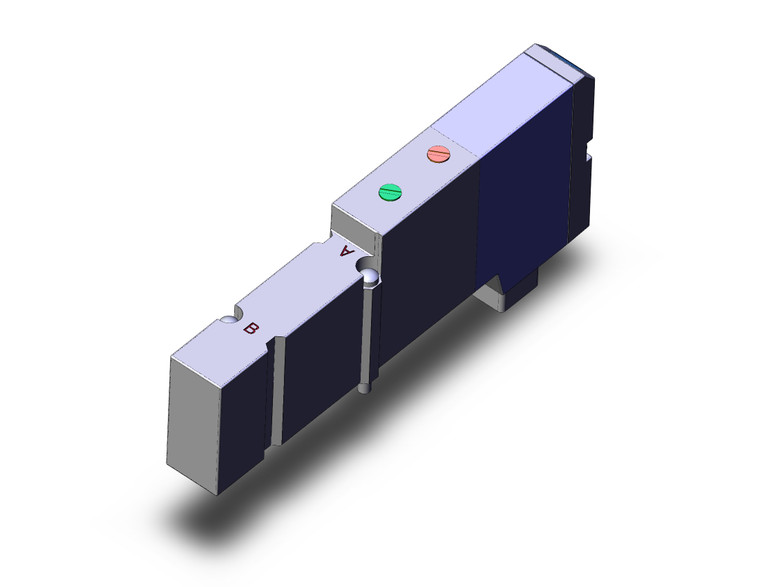

SMC SV1A00-5FUD 4 Position Dual 3 Port Solenoid Valve (N.C./N.C.)
SMC
$98.90
The SMC SV1A00-5FUD 4 Position Dual 3 Port (N.C./N.C.) Solenoid Valve is a pinnacle of engineering excellence, designed to meet the rigorous demands of modern industrial applications. As part of the SV1000 series, this 5 Port Solenoid Valve integrates a multi-connector system, replacing traditional lead wires for internal manifold wiring, thereby streamlining installation and maintenance processes.
Engineered for flexibility, the SV1A00-5FUD features a cassette base type manifold, allowing for seamless expansion with a simple release mechanism. This design innovation supports up to 16 stations with double solenoids, facilitated by 34 pin connectors, making it ideal for complex pneumatic systems.
Technical specifications include a fluid medium of air, with an operating pressure range from -100kPa to 0.7MPa, ensuring robust performance across various industrial environments. The valve boasts a rapid response time of 18 milliseconds or less at 0.5MPa, enhancing operational efficiency. Available in coil rated voltages of 12 and 24VDC, it accommodates diverse power requirements.
The SV1A00-5FUD is built to withstand challenging conditions, with an ambient fluid temperature range of -10 to 50°C and an IP67 enclosure rating, ensuring protection against dust and water ingress as per IEC529 standards.
For engineers and manufacturing professionals seeking a reliable, adaptable, and high-performance solenoid valve, the SMC SV1A00-5FUD is an optimal choice. Explore the full capabilities of the SV series by accessing the [Series Catalog](https://content2.smcetech.com/pdf/SV.pdf).
- Manifold Wiring:
- Double
- Manifold Block:
- w/o Manifold Block
- Manual Override:
- Slotted Locking Type
- Light & Surge Suppressor:
- Light & Surge Suppressor
- Voltage:
- 24VDC
- Pilot:
- Internal Pilot
- Function:
- 4 Position Dual 3 Port N.C./N.C.
