Manufacturer's Part Number: 100046442

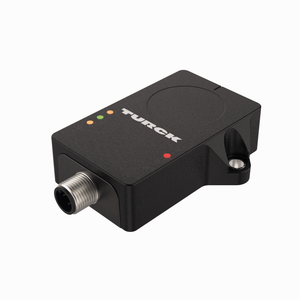

Dynamic Inclinometer. CANopen. Ident. no.: 100046442. Rectangular, plastic, Ultem. Status displayed via LED. Angle detection over one axis with 360° measuring range. Recording of the rotation rate over three axes with a measuring range of ±1000°/s. Recording of the acceleration over three axes with a measuring range of ±4 g. Temperature detection from -40
85 °C. High protection class IP68/IP69K. Increased interference immunity 100 V/m acc. to ISO 11452-2, 200 mA acc. to ISO 11452-4. Protection against conducted interference acc. to ISO 7637-2 severity degree Level 4 and load dump acc. to ISO 16750-2 for 12-V/24-V systems. Withstands rapid temperature change. 8
36 VDC. Connector, M12 Ã 1, 5-pin, CAN in. Acc. to CiA 301, CiA 305, CiA 410
- Measuring principle:
- Combination of gyroscopes and accelerometers
- Measuring range:
- 0 360°
- Number of measuring axes:
- 1
- Construction size:
- 71.6 x 62.6 x 20 mm
- Operating voltage:
- 8 36 VDC
- Communication protocol:
- CANopen
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Plastic, Ultem
- Ambient temperature:
- -40 +85 °C
- Protection class:
- IP68/IP69K
