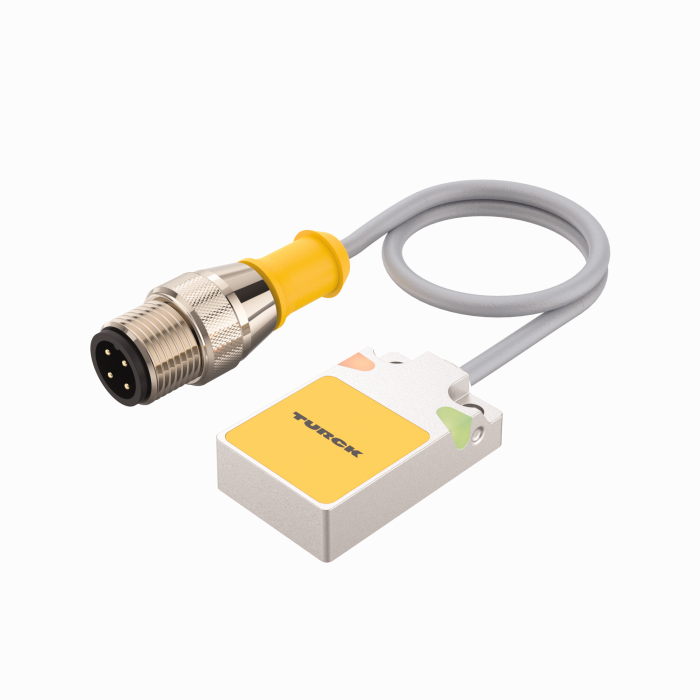

Turck Bi5U-Q08-Ap6X2-0.2-Rse 4T-P7X2 Inductive 1608970
Turck
$177.80
Manufacturer's Part Number: 1608970
Inductive Sensor. Ident. no.: 1608970. Rectangular, height 8 mm. Active face on top. Metal, Zamak, nickel-plated. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. Pigtail with male end M12 x 1
- Design:
- Rectangular
- Construction size:
- 32 x 20 x 8 mm, Q08
- Rated switching distance:
- 5 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.20 m
- Housing material:
- Metal, Zamak, Nickel Plated
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
