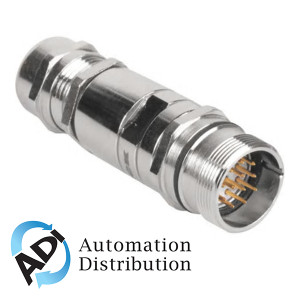

Turck Ck 12-0 Field Wireable Connectors U0105
Turck
$44.00
Manufacturer's Part Number: U0105
Actuator and Sensor Field Wireable. Female M23 Ã 1, Straight. Ident. no.: U0105. Straight Female M23 multifast Field Wireable. 12 pins. Solder termination. Metal housing. Solder connection. 12-pin. Cable feedthrough: 3.0
15.0 mm. Terminal capacity: 0.08
1.0 mm²
- Application:
- Signal
- Connector A:
- Female, M23 × 1, Straight
- Number of contacts:
- 12
- Connection mode:
- Solder contact
- Housing material:
- Brass, CuZn, nickel-plated
- Coupling nut/screw material:
- Brass, CuZn, Nickel-plated
- Acceptable cable diameter:
- 7 10 mm
- Core cross-section/Clamping ability:
- 0.25 18 mm²
- Voltage:
- 300 V
- Current:
- 8 A
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
