Manufacturer's Part Number: U4574

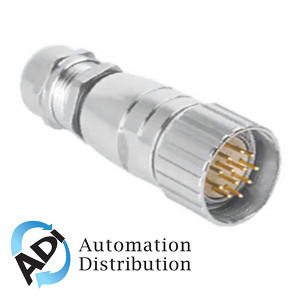

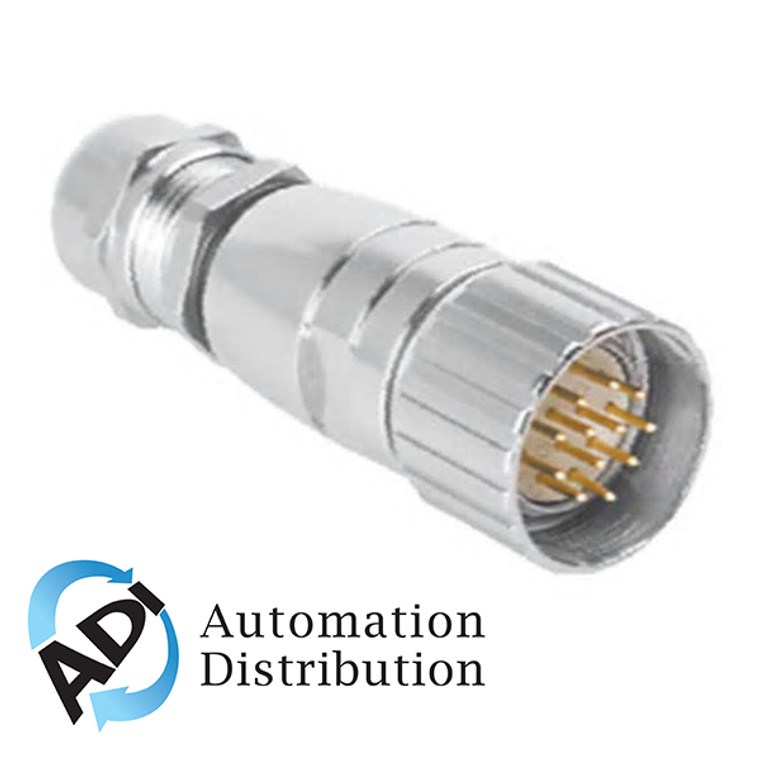

Actuator and Sensor Field Wireable. Male M23 Ã 1, Straight. Ident. no.: U4574. Straight Male M23 multifast Field Wireable. 16 pins. Solder termination. Metal housing. Cable feedthrough: 3.0
15.0 mm. Terminal capacity: 0.08
1.0 mm²
- Application:
- Signal
- Connector A:
- Male, M23 × 1, Straight
- Number of contacts:
- 16
- Connection mode:
- Solder contact
- Housing material:
- Brass, GD-Zn
- Coupling nut/screw material:
- Brass, CuZn, Nickel-plated
- Acceptable cable diameter:
- 3 15 mm
- Core cross-section/Clamping ability:
- 0.08 18 mm²
- Voltage:
- 150 V
- Current:
- 8 A
