Turck Ekrb-Esrb-A4.400-Hua6-6 Cordsets 100036008
Turck
$77.80
Manufacturer's Part Number: 100036008

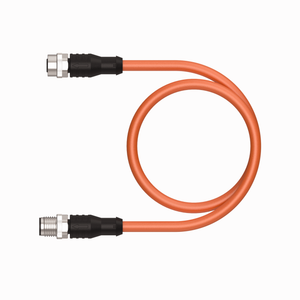

Actuator and Sensor Cable. Extension Cable. Ident. no.: 100036008. M12, Female, Straight, 4-pin. M12, Male, Straight, 4-pin. Halogen Free Cable. Orange TPU jacket, 4 x 0.34 mm² (similar to 22 AWG). -50 Cold Bend Rating. Flame Ratings: UL1581, FT2
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Connector B:
- Male, M12 ?ù 1, Straight, A-code
- Current:
- 4 A
- Cable diameter:
- ?ÿ 4.7 mm
- Length (L):
- 6.0 m
- Cable jacket:
- TPU, Orange
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
