Turck Ekrb-Esrb-A5.500-Hua6-2 Cordsets 100038126
Turck
$50.40
Manufacturer's Part Number: 100038126

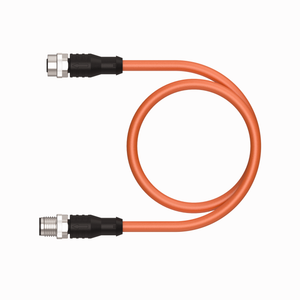

Actuator and Sensor Cable. Extension Cable. Ident. no.: 100038126. M12, Female, Straight, 5-pin. M12, Male, Straight, 5-pin. Halogen Free Cable. Orange TPU jacket, 5 x 0.34 mm² (similar to 22 AWG). -50 Cold Bend Rating. Flame Ratings: UL1581, FT2
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Connector B:
- Male, M12 ?ù 1, Straight, A-code
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.5 mm
- Length (L):
- 2.0 m
- Cable jacket:
- TPU, Orange
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
