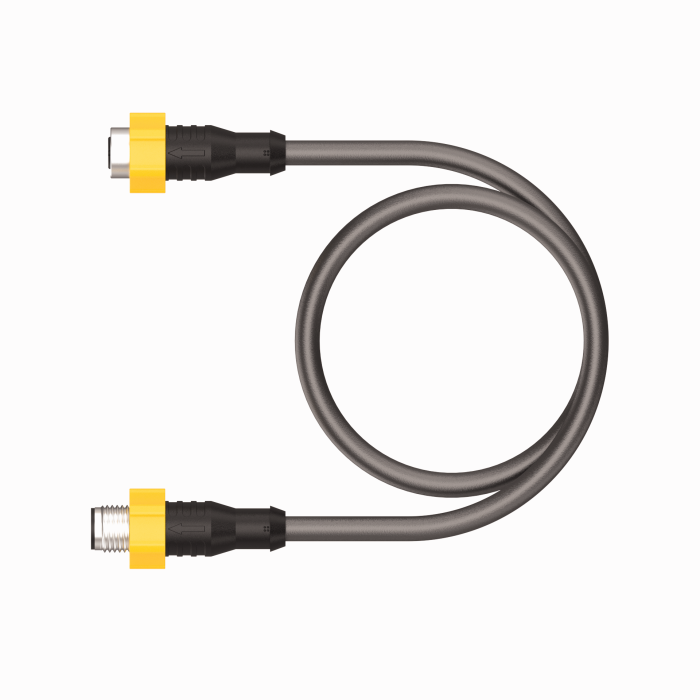

Turck Ekrt-Esrt-A5.500-Gc2K-6 Cordsets 100039914
Turck
$53.80
Manufacturer's Part Number: 100039914
Actuator and Sensor Cable, PVC. Extension Cable. Ident. no.: 100039914. M12 female connector, straight, 5-pin. M12 male connector, straight, 5-pin. Instrumentation tray cable. PVC jacket, black, 5 Ã 22 AWG. UV resistant. -40 °C cold bending strength. Oil resistant. Fire classes: UL1685 FT4, UL1061, CSA FT4. Flexlife and C-Track approved. M12, Female, Straight, 5-pin, Torque sleeve. M12, Male, Straight, 5-pin, Torque sleeve. Instrumentation Tray Cable. Black PVC jacket, 5X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Connector B:
- Male, M12 ?ù 1, Straight, A-code
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.69 mm
- Length (L):
- 6.0 m
- Cable jacket:
- PVC, Black
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Torque sleeve
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
