Turck EKWL001-A5.500-FE8Y-20 ID# 100045759
Turck
$143.80
Manufacturer's Part Number: 100045759

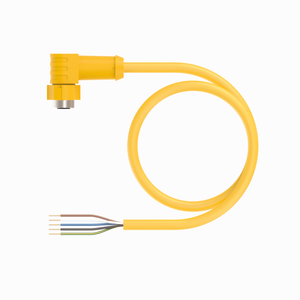

Actuator and Sensor Cable. Connection Cable. Ident. no.: 100045759. M12, Female, Right angle, 5-pin, Torque sleeve. Flexlife Cable. Yellow TPE jacket, 5X18 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 × 1, Right angle, A-code
- Number of contacts:
- 5
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Stainless Steel, 316L (1.4404), Passivated
- Current:
- 5 A
- Cable diameter:
- Ø 6.73 mm
- Length (L):
- 20.0 m
- Cable jacket:
- TPE, Yellow
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Torque sleeve
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
