Turck Ni35U-Ck40-Adz30X2-B3131 W/Bs4 Inductive 4280431
Manufacturer's Part Number: 4280431

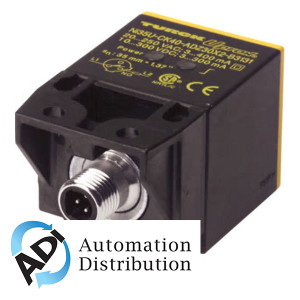

Inductive Sensor. With Extended Switching Distance. Ident. no.: 4280431. Rectangular, height 40 mm. Variable orientation of active face in 5 directions. Plastic, PBT GF30 V0. Only use the included plastic clip BS4-CK40. Factor 1 for all metals. Increased switching distance. Protection class IP68. Large coverage. Resistant to magnetic fields. Extended temperature range. High switching frequency. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 1/2" male connector
- Design:
- Rectangular
- Construction size:
- 65 x 40 x 40 mm, CK40
- Rated switching distance:
- 35 mm
- Mounting:
- Non-flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector, 1/2
- Housing material:
- Plastic, PBT-GF20-V0, Black
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Sn +, Factor 1
