Turck Ni5-G12Sk-Ap6X2 Inductive 46366
Turck
Manufacturer's Part Number: 46366

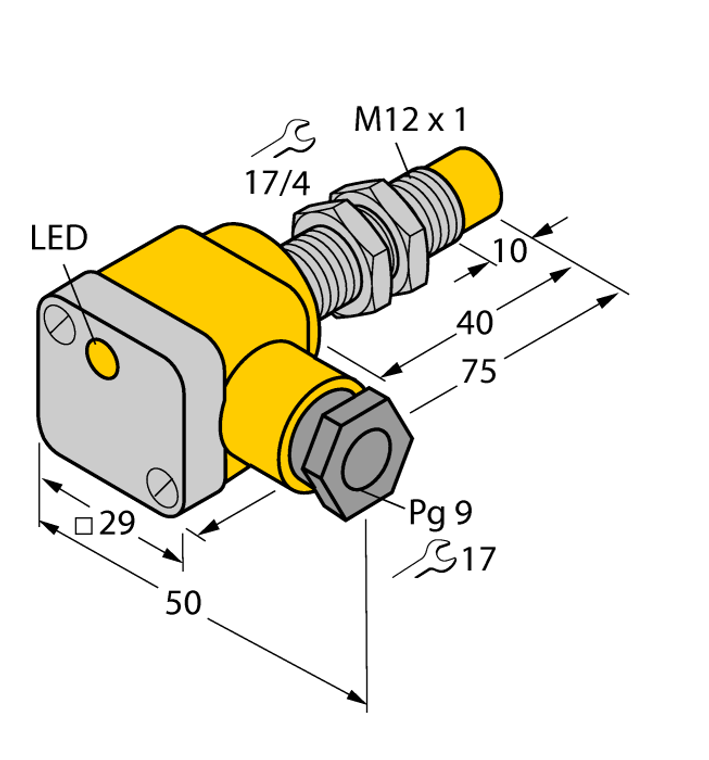

Inductive Sensor. Ident. no.: 46366. Threaded barrel, M12 x 1. Chrome-plated brass. DC 3-wire, 10
30 VDC. NO contact, PNP output. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 5 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.50 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
