Turck Pkw 4M-3-Psw 4M/S90/S771/S3013 Cordsets UX19456
Turck
$50.70
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Pkw 4M-3-Psw 4M/S90/S771/S3013 Cordsets UX19456
Manufacturer's Part Number: UX19456

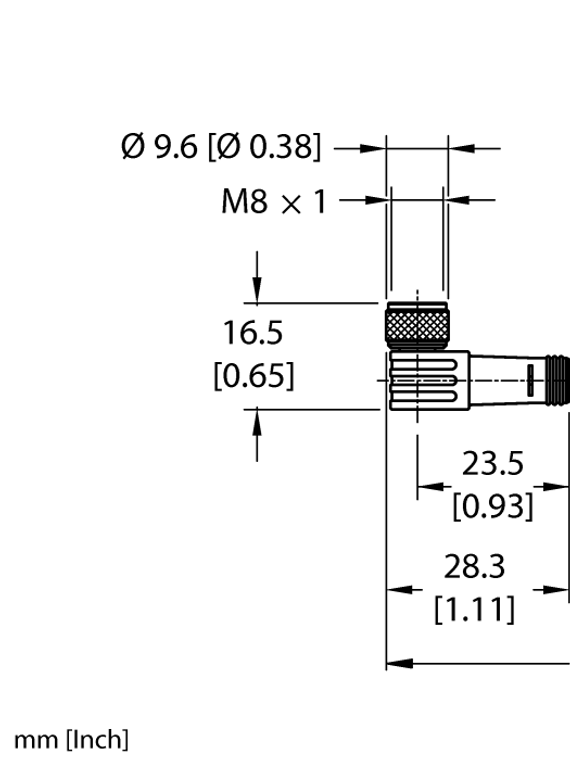

Actuator and Sensor Cordset. Extension Cordset. Ident. no.: UX19456. Right angle Female M8 picofast Connector. Right angle Male M8 picofast Connector. M8, Female, Right-angle, 4-pin. Threaded Connector. M8, Male, Right-angle, 4-pin. Threaded Connector. flexlife5. General Purpose Cable. TPU jacket, Black, 4X22 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M8 ?ù 1, Right angle
- Connector B:
- Male, M8 ?ù 1, Right angle
- Voltage:
- 125 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 5.13 mm
- Length (L):
- 3.0 m
- Cable jacket:
- TPU, Black
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67
- Approvals:
- CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
