Manufacturer's Part Number: UX01380

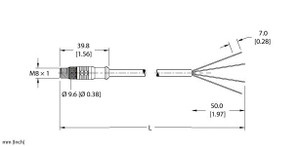

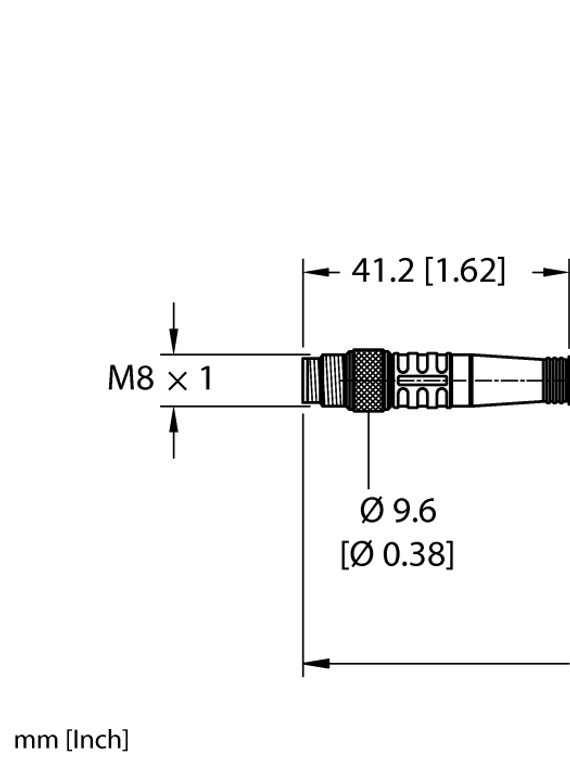

Actuator and Sensor Cable. Connection Cable. Ident. no.: UX01380. M8, Male, Straight, 5-pin. Threaded Connector. General Purpose Cable. Yellow PVC jacket, 5X24 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Male, M8 ?ù 1, Straight
- Number of contacts:
- 5
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 30 V
- Current:
- 3 A
- Cable diameter:
- ?ÿ 4.5 mm
- Length (L):
- 0.50 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP68
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
