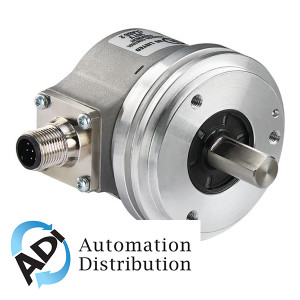

Turck RI-10SA1Z4-2K512-10MIL ID# 200005709
Turck
$390.00
Manufacturer's Part Number: 200005709
Incremental Shaft Encoder. Industrial Line. Ident. no.: 200005709. Square flange, Ã 50,8 mm. Solid shaft, Ã 3/8 x 5/8. Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 5
30 VDC. Male connector MIL, 10-pole. Push-pull 7272, with inverted signals. Pulse frequency max. 300 kHz. 512 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Solid shaft
- Shaft diameter D:
- 0.375 in
- Flange diameter:
- Ø 50.8 mm
- Flange type:
- Rectangular flange
- Resolution incremental:
- 512 ppr
- Operating voltage:
- 5 30 VDC
- Output function:
- Push-Pull 7272, with inverted signals
- Electrical connection:
- Connector
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
