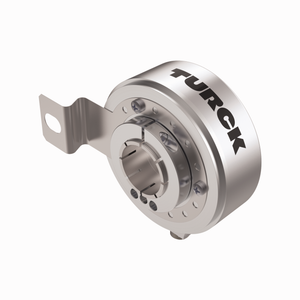

Turck Ri-43H42E2-1B1024-H1181 Encoder 100016494
Manufacturer's Part Number: 100016494
Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 100016494. Flange with 4 ½ C-Face Tether, Ã 100 mm. Hollow shaft, Ã 42mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 10
30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, without inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 42
- Flange diameter:
- Ø 100 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, non-invertable
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +80 °C
- Protection class shaft:
- IP65
- Protection class:
- IP65
