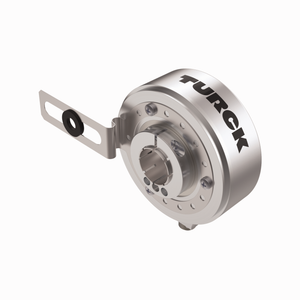

Turck Ri-43Ha6S8-2B1024-H1181/N42/N41 Encoder 100041013
Turck
$630.00
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Ri-43Ha6S8-2B1024-H1181/N42/N41 Encoder 100041013
Manufacturer's Part Number: 100041013
Incremental Hollow Shaft Rotary Encoder. Industrial Line. Ident. no.: 100041013. Flange with long arm bracket, Ã 100 mm. Hollow shaft, Ã 1. (N42) Isolation insert 1545824 RSA-A6 included.. Code (N41) special wiring see catalog B1027 page E29. Optical measuring principle. Shaft material, stainless steel. Protection class IP65 on the shaft side. 40... +80°C. max. 6000 rev / min. 10
30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 1024 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 25.4
- Shaft diameter D:
- 1 in
- Flange diameter:
- Ø 100 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 1024 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +80 °C
- Protection class shaft:
- IP65
- Protection class:
- IP65
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
