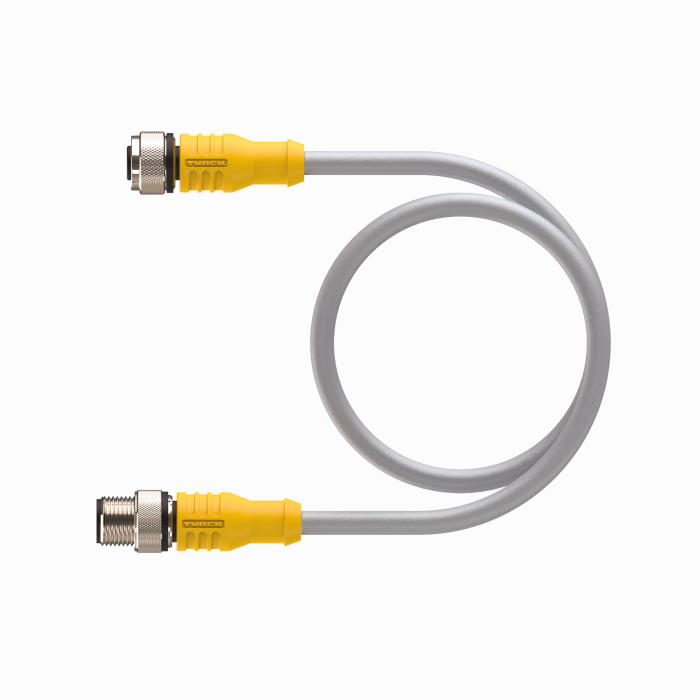

Turck Rkc 8T-14-Rsc 8T Cordsets U-23968
Turck
$126.60
Manufacturer's Part Number: U-23968
Actuator and Sensor Cable. Extension Cable. Ident. no.: U-23968. M12, Female, Straight, 8-pin. M12, Male, Straight, 8-pin. IP68, IP69K. General Purpose Cable. Gray PVC jacket, 8X24 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Connector B:
- Male, M12 ?ù 1, Straight, A-code
- Voltage:
- 75 V
- Current:
- 2 A
- Cable diameter:
- ?ÿ 5.69 mm
- Length (L):
- 14.0 m
- Cable jacket:
- PVC, Gray
- Number of Conductors:
- 8
- Protection class (When coupled):
- IP68, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
