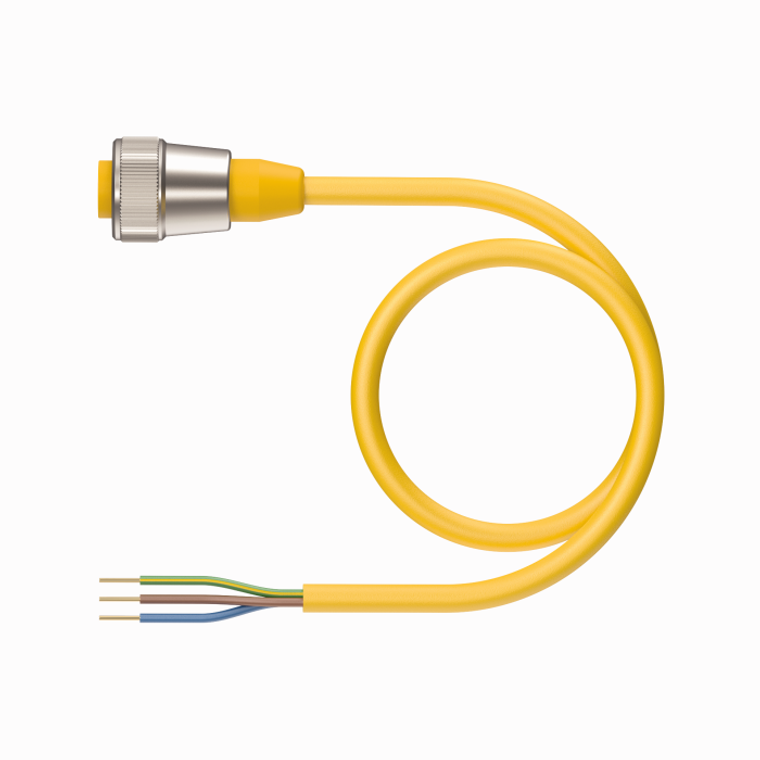

Actuator and Sensor Cable. Connection Cable. Ident. no.: 100012547. 7/8 Female, Straight, 3-pin. Instrumentation Tray Cable. Yellow PVC jacket, 3X18 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, 7/8-16 UN, Straight
- Number of contacts:
- 3
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 600 V
- Current:
- 9 A
- Cable diameter:
- ?ÿ 6.2 mm
- Length (L):
- 45.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Tray cable
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
