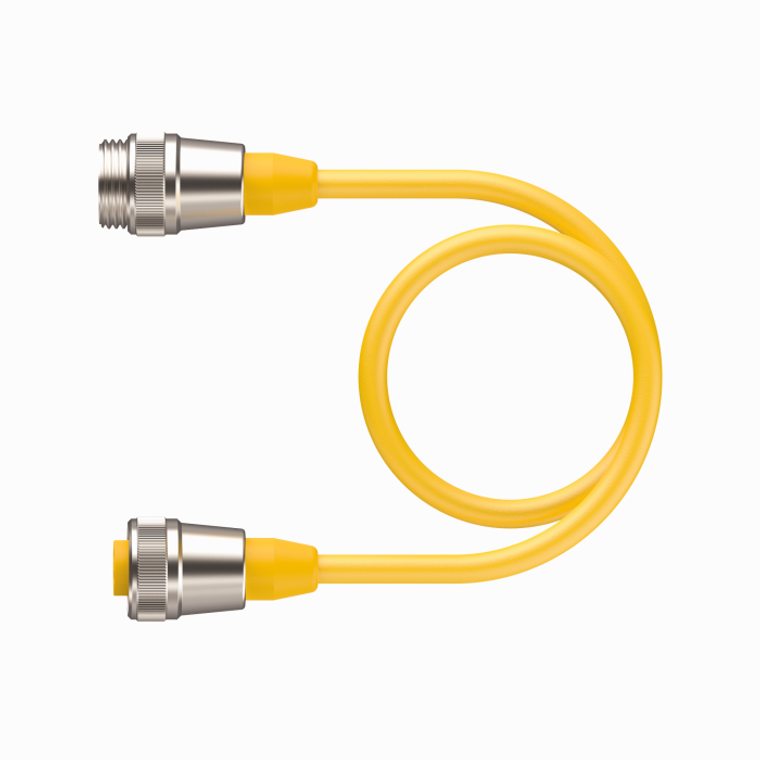

Turck Rsm 50-1.5M Cordset U-93463
Turck
$38.00
Manufacturer's Part Number: U-93463
Actuator and Sensor Cable. Extension Cable. Ident. no.: U-40976. 7/8 Male, Straight, 5-pin. 7/8 Female, Straight, 5-pin. General Purpose Cable. Yellow TPU jacket, 5X18 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Double-ended
- Connector A:
- Male, 7/8-16 UN, Straight
- Connector B:
- Female, 7/8-16 UN, Straight
- Voltage:
- 600 V
- Current:
- 9 A
- Cable diameter:
- ?ÿ 7.24 mm
- Length (L):
- 1.50 m
- Cable jacket:
- TPU, Yellow
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
