Turck Rssw Rksw 455-2M Cordsets U0350
Turck
$63.30
Manufacturer's Part Number: U0350

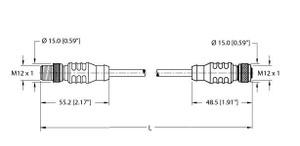

Cable for PROFIBUS-DP. Extension Cable. Ident. no.: U0350. M12, Male, Straight, 5-pin, B-Code. M12, Female, Straight, 8-pin, B-Code. Fieldbus Technology Cable. fieldbus type: PROFIBUS-DP, PVC jacket,Violet, shielded, 2X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Application:
- Data
- Design:
- Double-ended
- Connector A:
- Male, M12 ?ù 1, Straight, B-code
- Connector B:
- Female, M12 ?ù 1, Straight, B-code
- Fieldbus Protocol:
- PROFIBUS-DP
- Voltage:
- 250 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 8.51 mm
- Length (L):
- 2.0 m
- Cable jacket:
- PVC, Violet
- Number of Conductors:
- 2
- Protection class (When coupled):
- IP67
- Special Features:
- Tray cableExposed runShielded
- Approvals:
- CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
