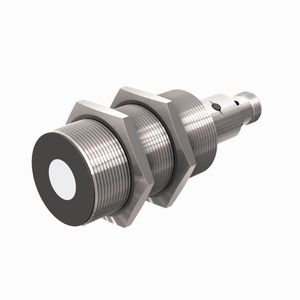

Turck Ru300U-M30E-2Up8X2T-H1151 Ultrasonic 1610040
Turck
$610.10
Manufacturer's Part Number: 1610040
Ultrasonic Sensor. Diffuse Mode Sensor. Ident. no.: 1610040. Smooth sonic transducer face. Cylindrical housing M30, potted. Connection via M12 x 1 male. Measuring range adjustable via teach button/Easy-Teach. Temperature compensation. Blind zone: 30 cm. Range: 300 cm. Resolution: 1 mm. Aperture angle of sonic cone: ±15 °. 2 x switching outputs, PNP. NO/NC programmable
- Function:
- Proximity
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Radiation direction:
- straight
- Range:
- 300?à3000 mm
- Resolution:
- 1 mm
- Operating voltage:
- 15?à30 VDC
- Switching element function:
- NO/NC
- Output function:
- PNP
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, CuZn, Nickel Plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Approvals:
- CE, cULus
- Manual:
- View
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
