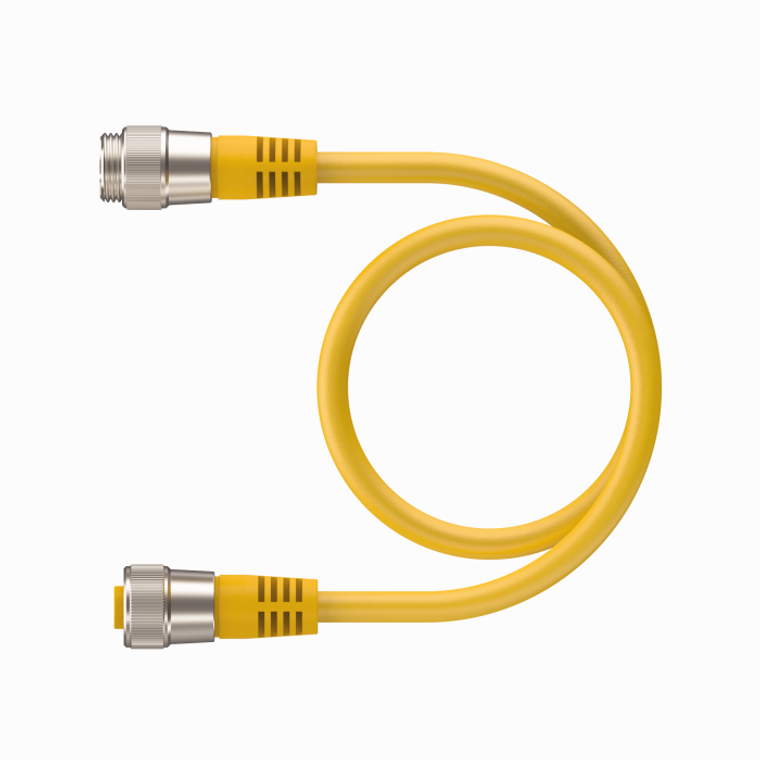

Turck Ry 46-5M Cordset U-21471
Turck
$71.60
Manufacturer's Part Number: U-21471
Power Cable. Extension Cable. Ident. no.: U2281-30. 7/8 male connector, straight, 4-pin. 7/8 female connector, straight, 4-pin. Jacket material: PVC. Jacket color: yellow. Protection class: IP67, IP68, IP69, IP69K. 7/8 Male, Straight, 4-pin. 7/8 Female, straight, 4-pin. Flexible Service Cable. Yellow PVC jacket, 4X16 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1100, CSA FT2
- Application:
- Power (>11 Amps)
- Design:
- Double-ended
- Connector A:
- Male, 7/8-16 UN, Straight
- Connector B:
- Female, 7/8-16 UN, Straight
- Voltage:
- 600 V
- Current:
- 10 A
- Cable diameter:
- 0.8 mm
- Length (L):
- 5.0 m
- Cable jacket:
- PVC, Yellow
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
