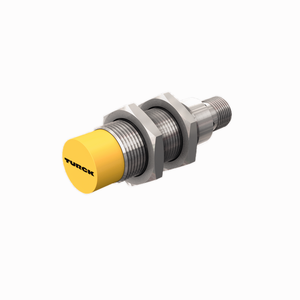

Turck TB-EM18WD-H1147-EX/C53 ID# 100036841

HF Read/Write Head. For Explosion Hazardous Areas or Areas with Extreme Requirements (e.g. Food Industry) and Bus Line Topology with TBEN-*. Ident. no.: 100036841. Threaded barrel, M18 x 1. Stainless steel, 1.4404. Front cap made of liquid crystal polymer. High protection class IP69K, for harsh environments. Special double-lip seal. Protection against all common acid and alkaline cleaning agents. For the food industry. Laser engraved label, permanently legible. Device without end termination. Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*. Max. 32 nodes per line or connection permitted. Use a corresponding terminating resistor (see accessories). Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables. Observe the voltage drop on the line. The maximum possible length of the spur line is 2 m. The maximum possible length of the bus is 50 m. By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications. In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module. The read/write head is automatically assigned an address. For different application requirements, the address and can be parameterized. Powered and operated only via connection to BL ident interface module. M12 × 1 connector, connection only via BL ident extension cable. ATEX category II 3 G, Ex zone 2. ATEX category II 3 D, Ex zone 22
