Turck TB-EM18WD-H1147-EX ID# 7030381
Turck
$590.00
Manufacturer's Part Number: 7030381

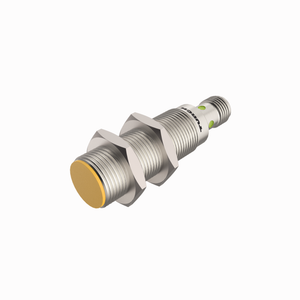

HF Read/Write Head. For Explosion Hazardous Areas or Areas with Extreme Requirements (e.g. Food Industry). Ident. no.: 7030381. Threaded barrel, M18 x 1. Stainless steel, 1.4404. Front cap made of liquid crystal polymer. High protection class IP69K, for harsh environments. Special double-lip seal. Protection against all common acid and alkaline cleaning agents. For the food industry. Laser engraved label, permanently legible. Powered and operated only via connection to BL ident interface module. M12 × 1 connector, connection only via BL ident extension cable. ATEX category II 3 G, Ex zone 2. ATEX category II 3 D, Ex zone 22
- Technology:
- HF RFID
- Radio communication and protocol standards:
- ISO 15693, NFC Typ 5
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Read/Write distance max.:
- 30 mm
- Mounting:
- Flush
- Fieldbus Protocol:
- Connection to RFID interface
- Housing material:
- Stainless steel, 1.4404 (AISI 316L)
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68/IP69K
- Approvals:
- ATEX II 3 G, ATEX II 3 D
- Manual:
- View
- Quick Start Guide:
- View
