Turck Wkb 3T-15/S628 Cordsets U-72061
Turck
$50.10
Manufacturer's Part Number: U-72061
Single-ended Cordset. Connection Cable. Ident. no.: U-72061. 1/2 female connector, angled, 3-pin. Sheath material: PVC. Sheath color: gray. Resistant to chemicals and oils. Resistant to acids and alkaline solutions. LABS free. RoHS-compliant. Protection class IP67. Cable length: 15 m
- Application:
- Signal
- Design:
- Single-ended
- Connector A:

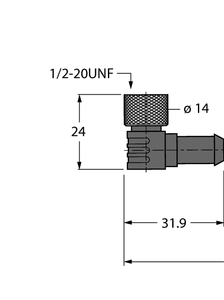

- Female, 1/2-20 UNF, Angled
- Number of contacts:
- 3
- Connector body:
- Plastic, TPU
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 250 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.3 mm
- Length (L):
- 15.0 m
- Cable jacket:
- PVC, Gray
- Number of Conductors:
- 3
- Protection class (When coupled):
- IP67, IP69K
- Special Features:
- Tray cable
- Approvals:
- CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238
